Features & Benefits
> ECE & ROHS compliant

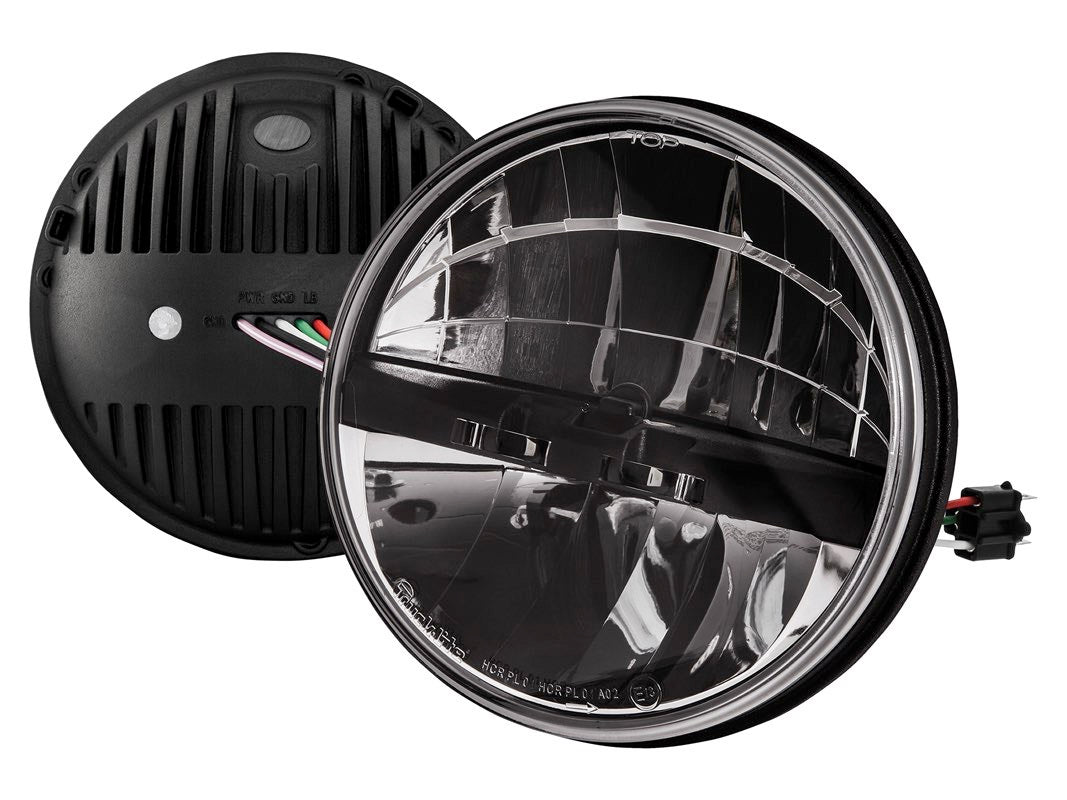

> LED sealed beam technology with polycarbonate lens and sealed electronics
> Up to 50 x longer life than halogen headlamps, lowering life-cycle costs
> Produces pure white light, nearly identical to daylight that is easy on the eye, unlike harsh blue HID systems

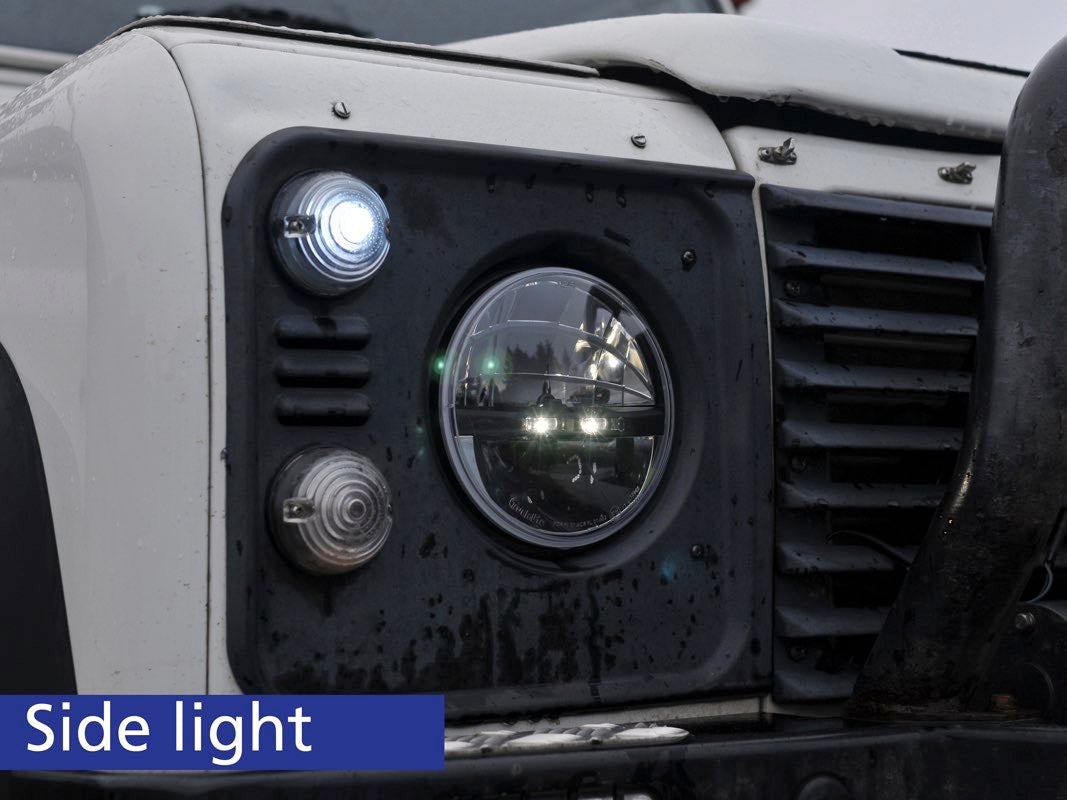

> Includes built-in position lamp with optional wiring

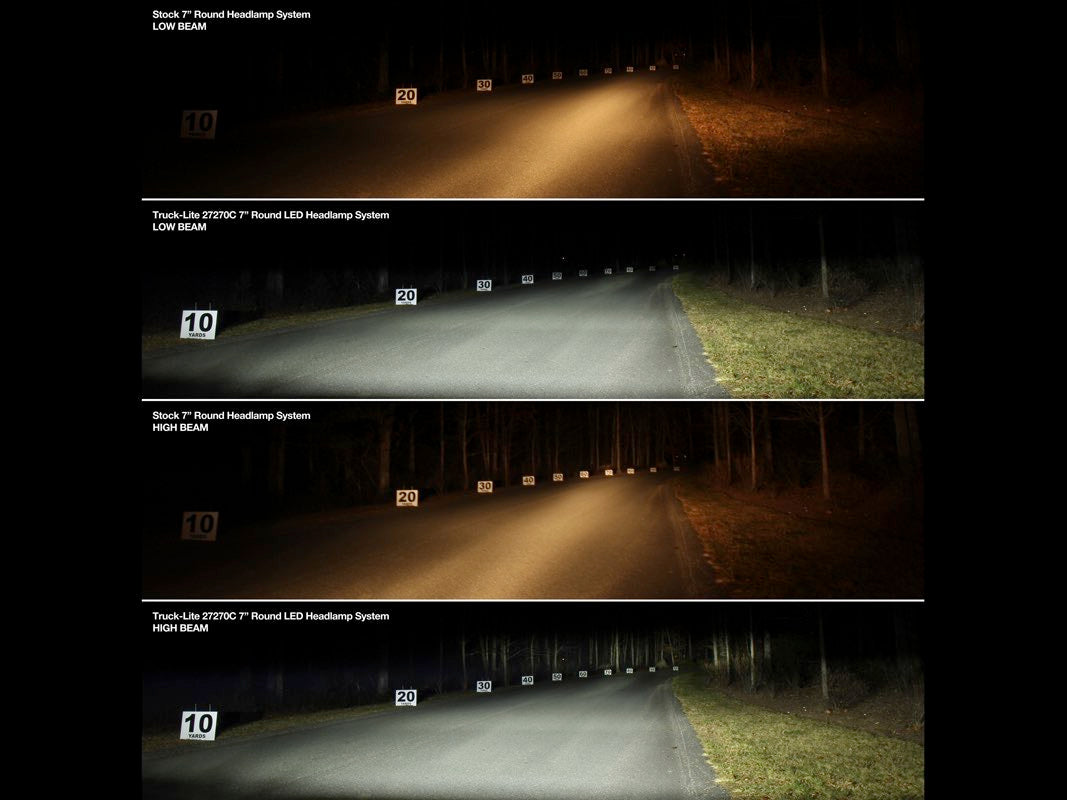

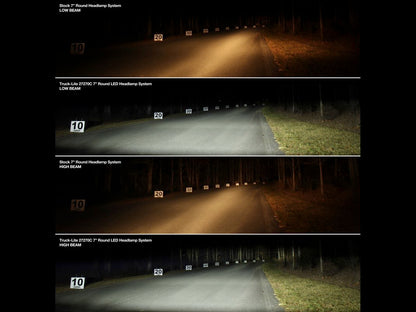

> Offers great forward vision, improved roadside coverage and highly controlled beam patterns, offering glare protection to oncoming traffic

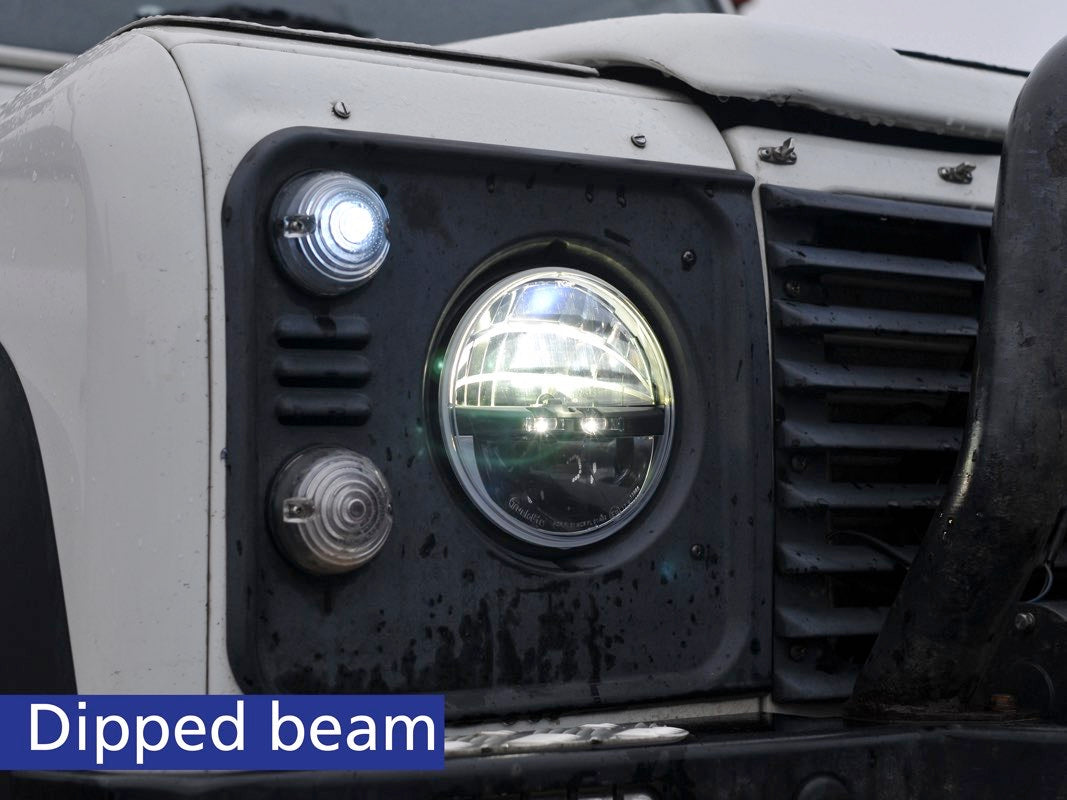

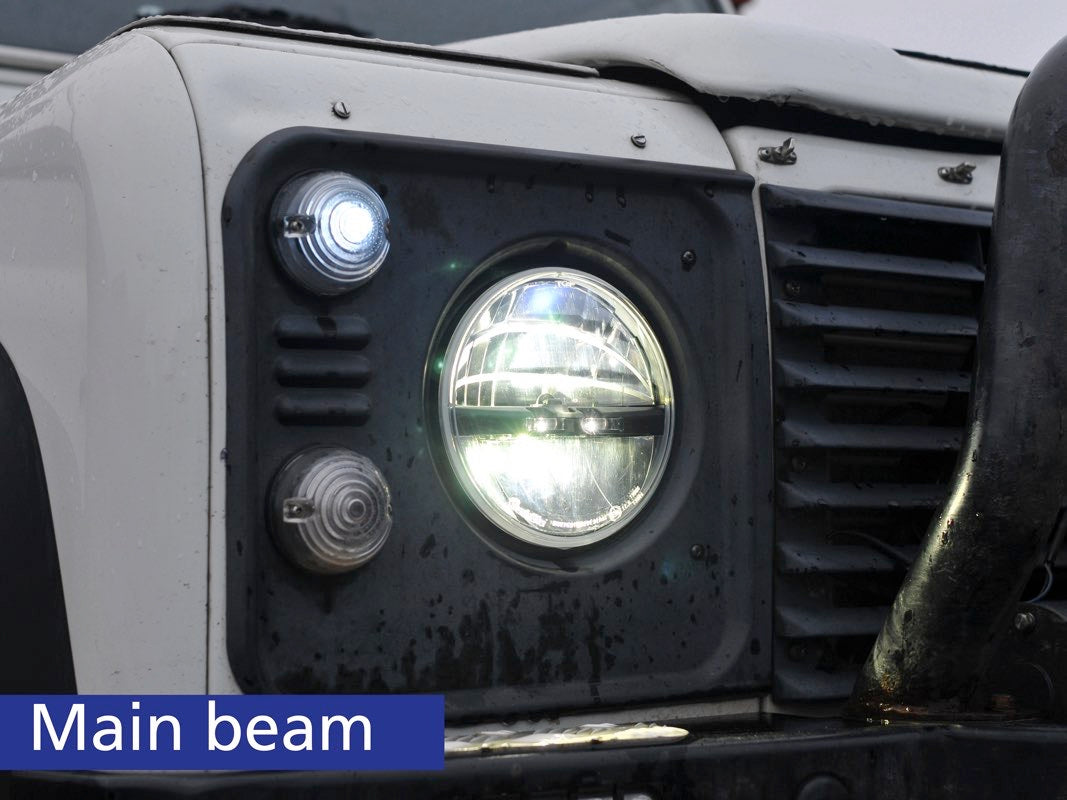

> Dipped/passing beam and main/driving beam functionality
> Ultra-bright output for maximum night visibility
> H4, 3-Blade connector system (main & dipped beam only)
Technical Specifications
Material
> Hard-coated polycarbonate lens
> eCoat aluminium housing and internal structures
> Metalized reflector
> 1.3mm CSA / 16 gauge wire
Light Source
> 2 LED arrays
Power
> Multi-volt (9V-33V) design works with both 12V and 24V systems
Headlamp
> 1.3A (dipped/passing) @ 13.2V
> 2.3A (main/driving) @ 13.2V
> 0.6A (dipped/passing) @ 26.4V
> 1.1A (main/driving) @ 26.4V
Position Lamp
> 0.03A @ 13.2V, 0.03A @ 26.4V
Additional Specifications
> Operating temperature range: -40°C to 50°C
> Overvoltage protection to 600V
