Discovery 5 (17-on) ST4 Evolution LED Spotlights Grille Integration Kit

ST4 Evolution LED Spotlights Grille Integration Kit

• Discovery 5

For an OE quality, auxiliary spotlight installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

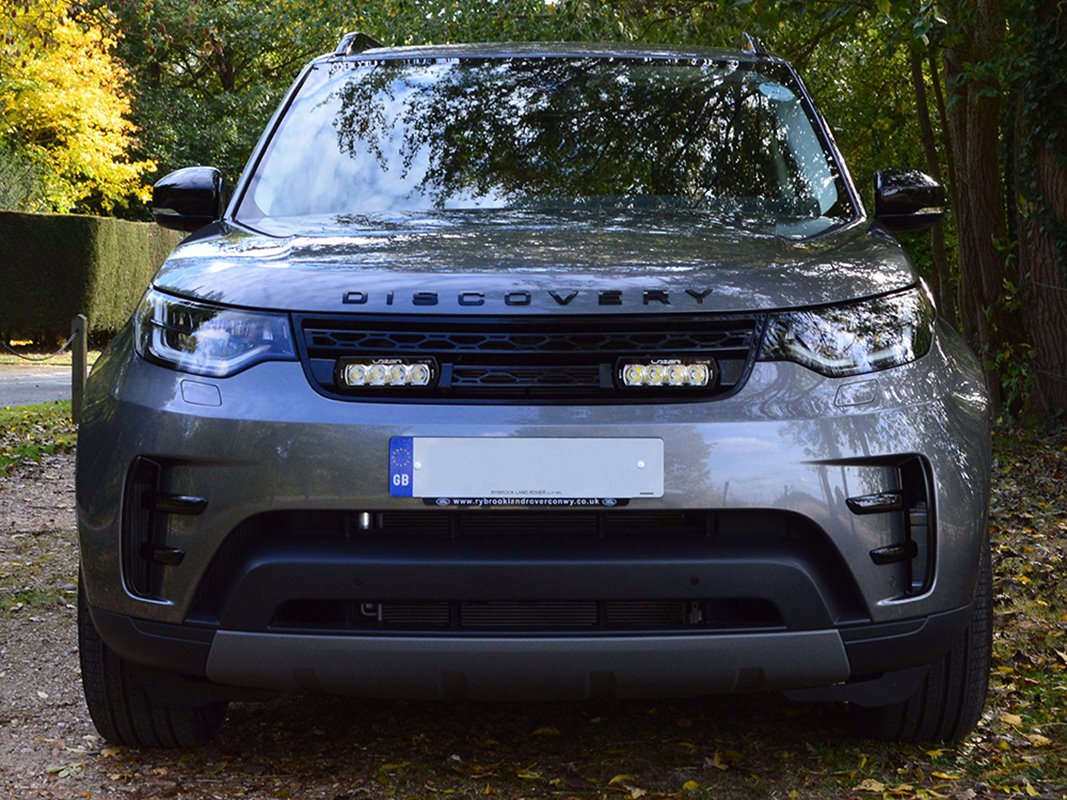

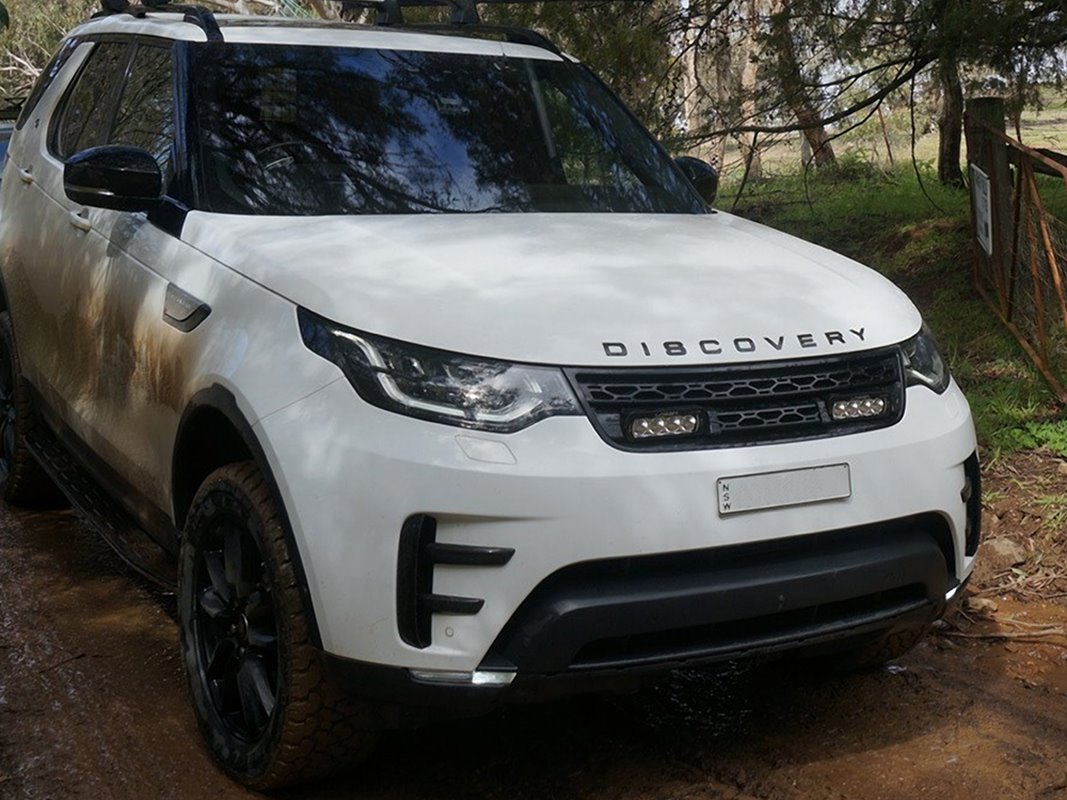

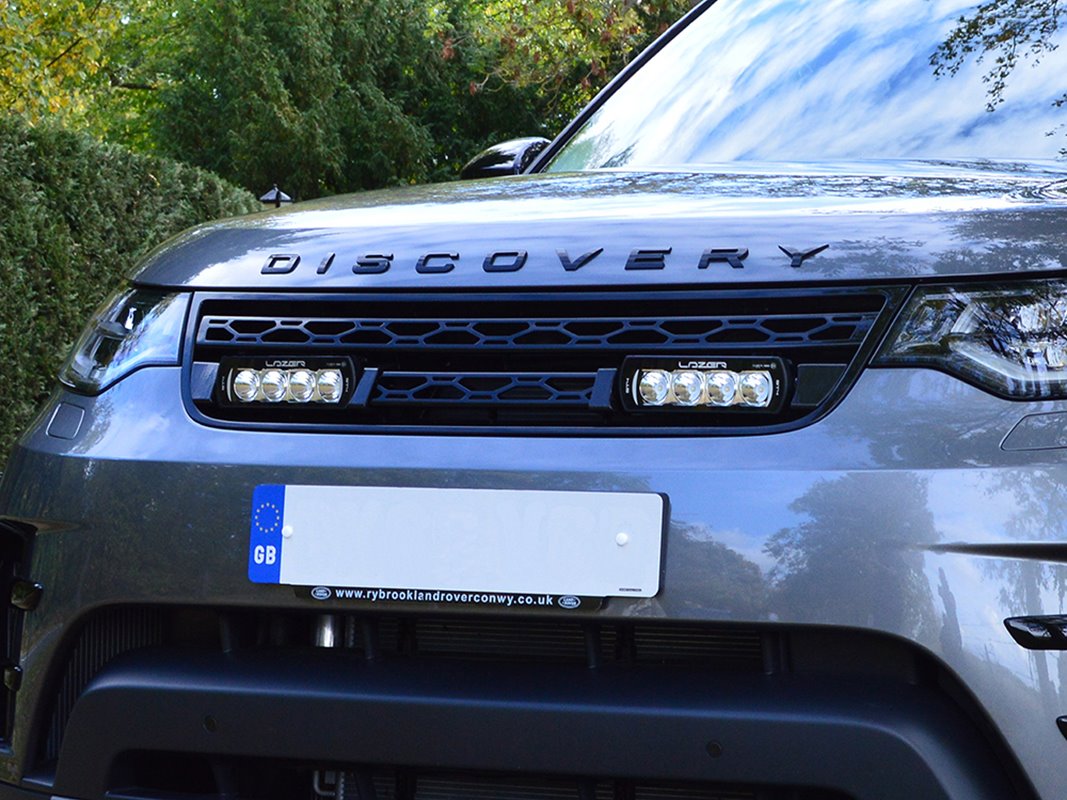

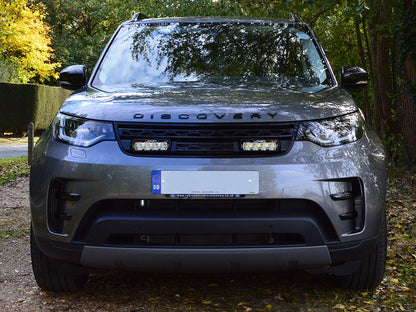

The Land Rover Discovery 5 kit includes a pair of ST4 Evolution, High Performance LED driving lights, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

Lazer Grille Integration Kits are carefully engineered and optimised for use with ST4 Evolution High Performance LED Spotlights.

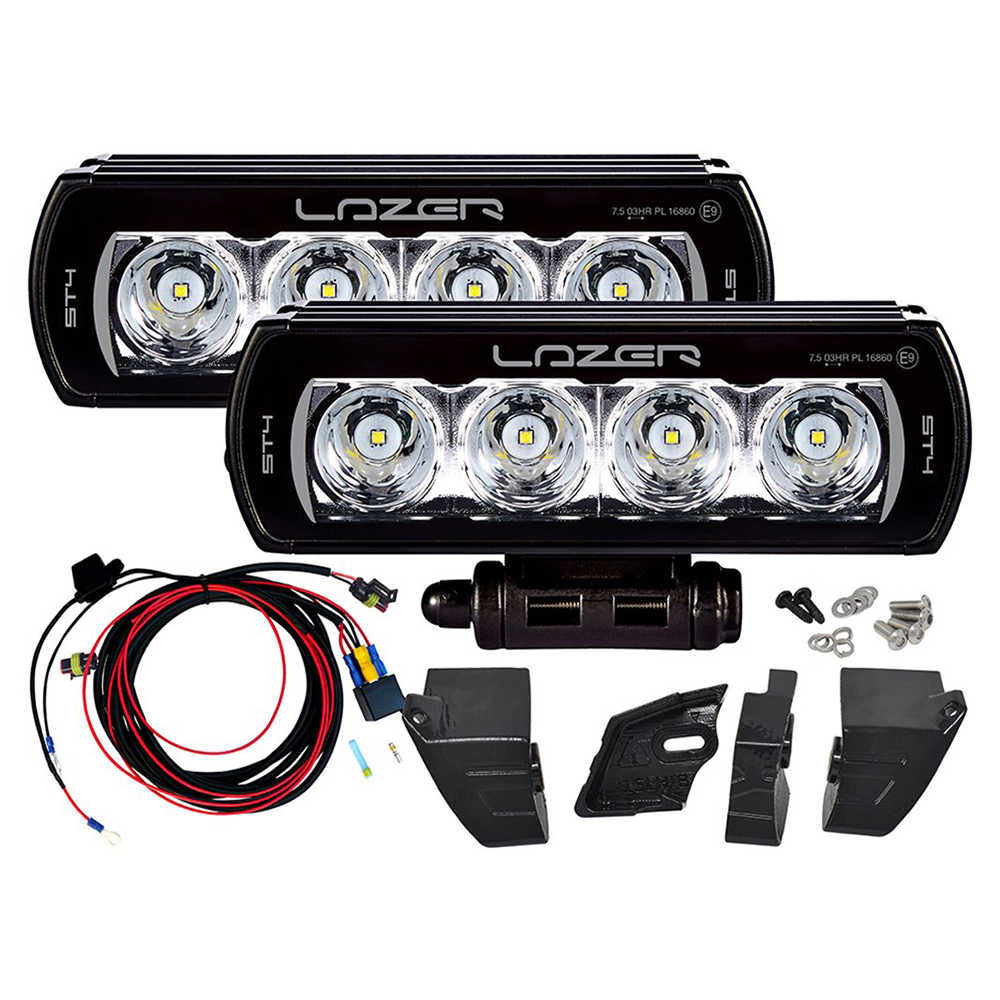

What’s included:
2 x ST4 Evolution High Performance LED Spotlights

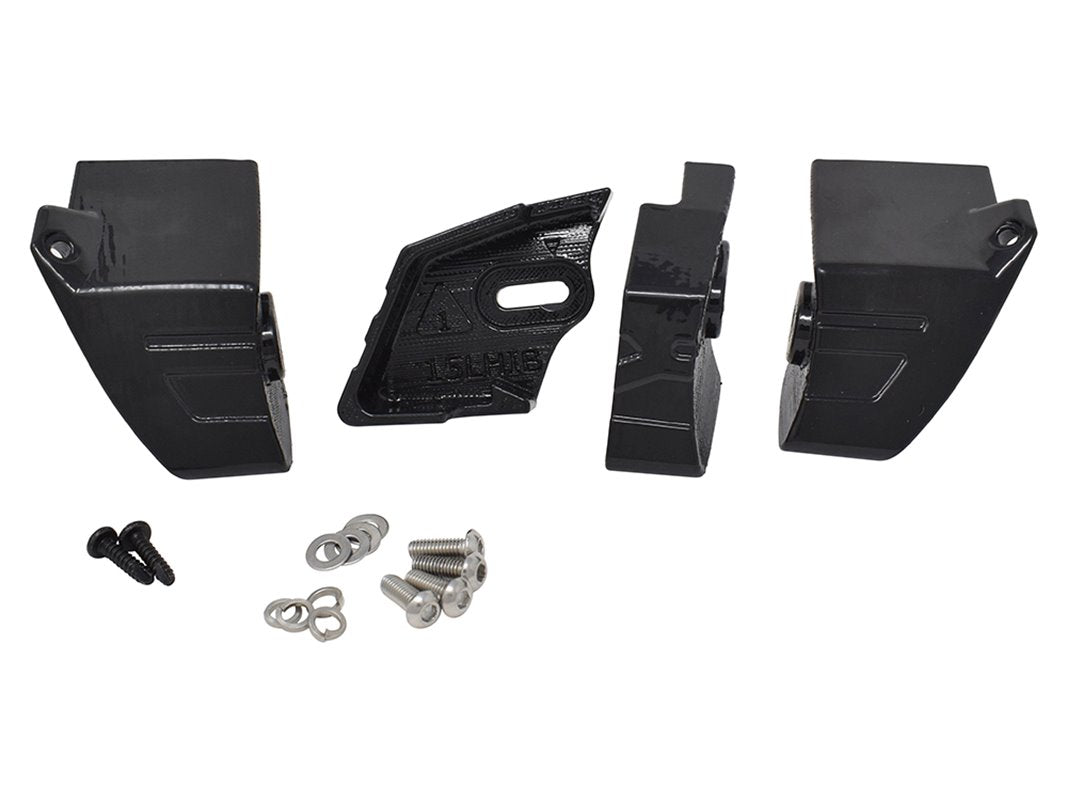

1 x Mounting Kit (comprising 4x Brackets and fasteners)
1 x Cutting Guide (comprising 4x Brackets)
1 x Two-Lamp Wiring Kit
1 x Installation instructions

Key Features
> Bespoke vehicle integration kit for Lazer LED Spotlight installation
> Custom fit for Land Rover Discovery 5
> Available with: ST4 Evolution High Performance LED Spotlights
> Kit also includes bespoke mounting brackets and two-lamp wiring kit
> Cutting guides included
> Brackets made from high strength, UV -stable, ASA material
> Fully road-legal
> 5-year warranty
> Made in Britain

Technical Specifications
Based on standard setup i.e. x2 ST4 Evolution Lazer High Performance LED Lamps:
> Voltage Range 10-32V
> LED Life 50,000 hours
> Weight 2 kg

High Beam Function
Total Luminous Flux 8272 Lm
Number of High Output LEDs 2 x 4
Power Consumption 94 Watts
Current Draw (at 14.4V) 6.6 Amps

Certification
High Beam ECE R112
E-Mark Ref 10 x2

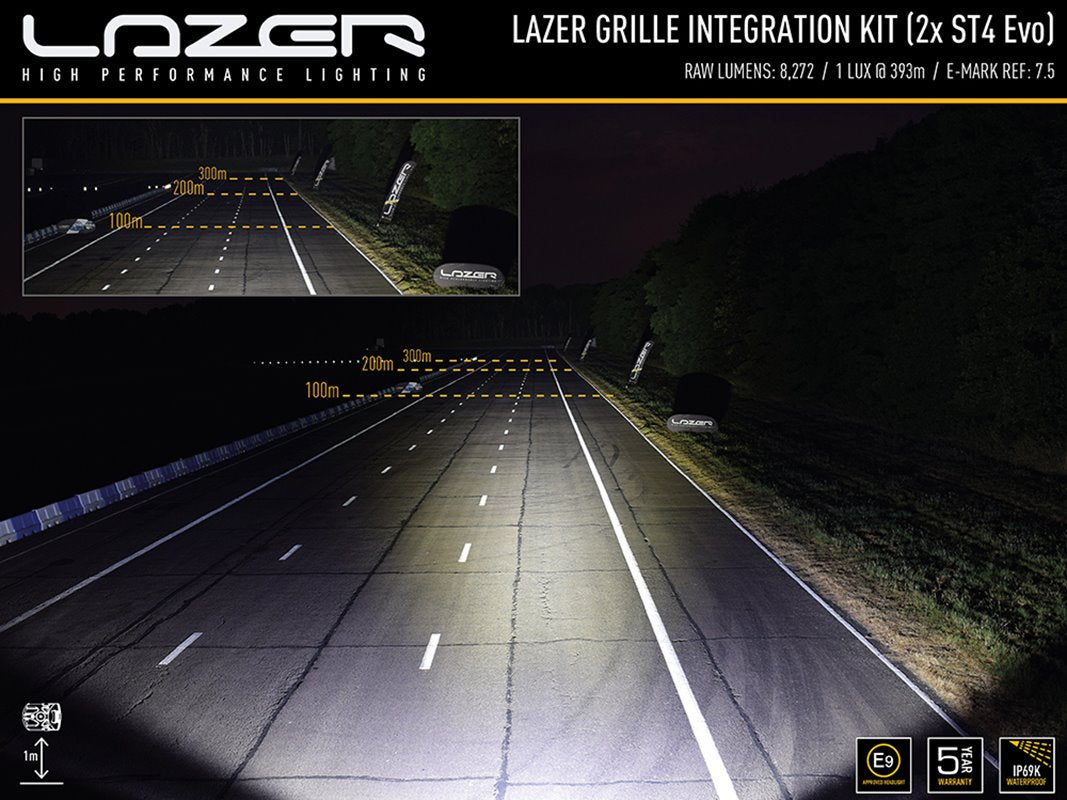

Photometric Data
Horizontal Beam Angle 28 Degrees
0.25 lx Line 786 metres
0.5 lx Line 555 metres
1 lx Line 393 metres
3 lx Line 227 metres
