Defender 2020 Triple-R 750 LED Grille Integrated Spotlight Kit

Triple-R 750 LED Spotlights Grille Integration Kit

• Defender - 2020 onwards

For an OE quality, auxiliary LED driving light installation, the Lazer Grille Integration Kits include bespoke mounting brackets which allow for quick and easy fitting of Lazer High Performance LED Spotlights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting lighting setup remains fully robust and secure, with extra protection against theft.

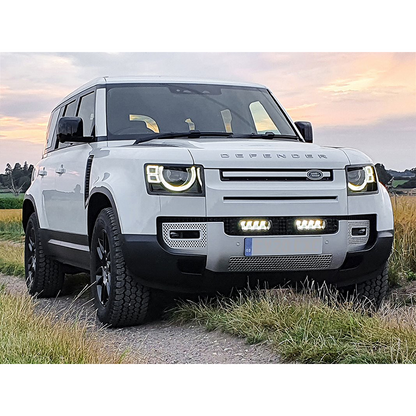

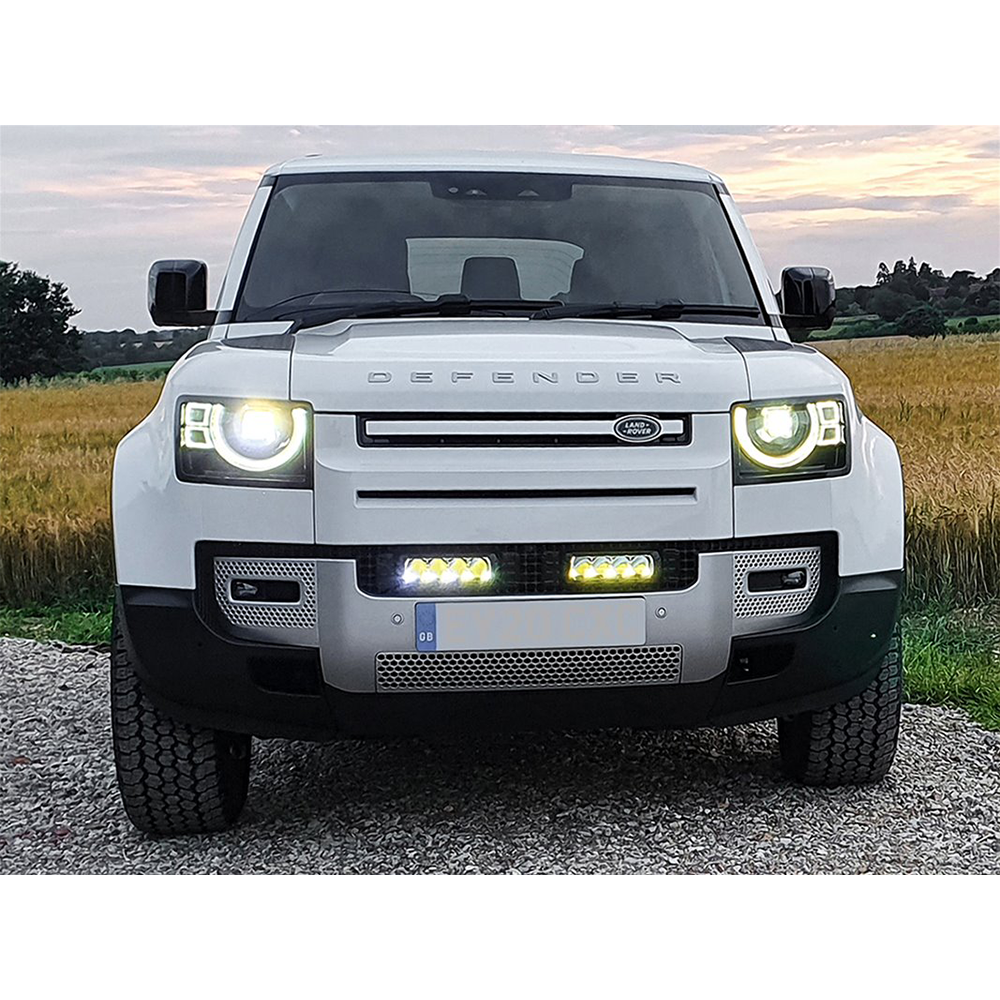

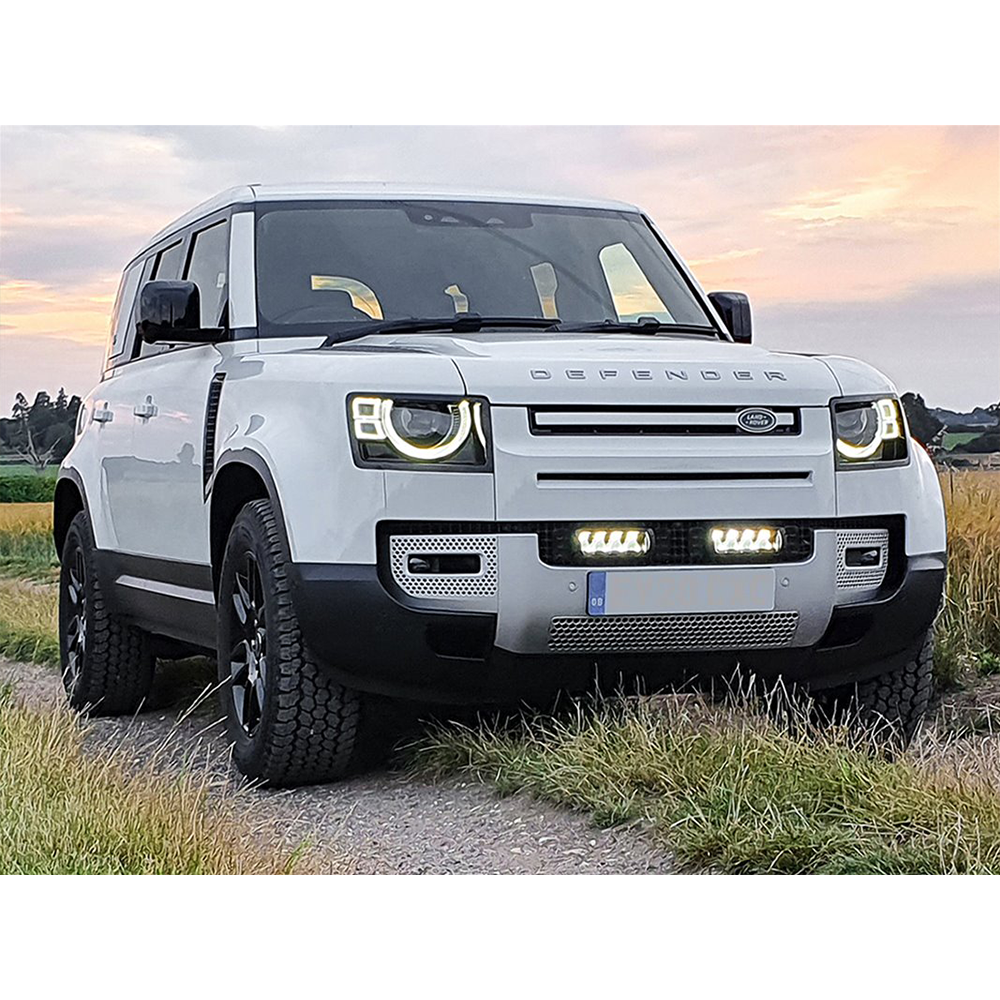

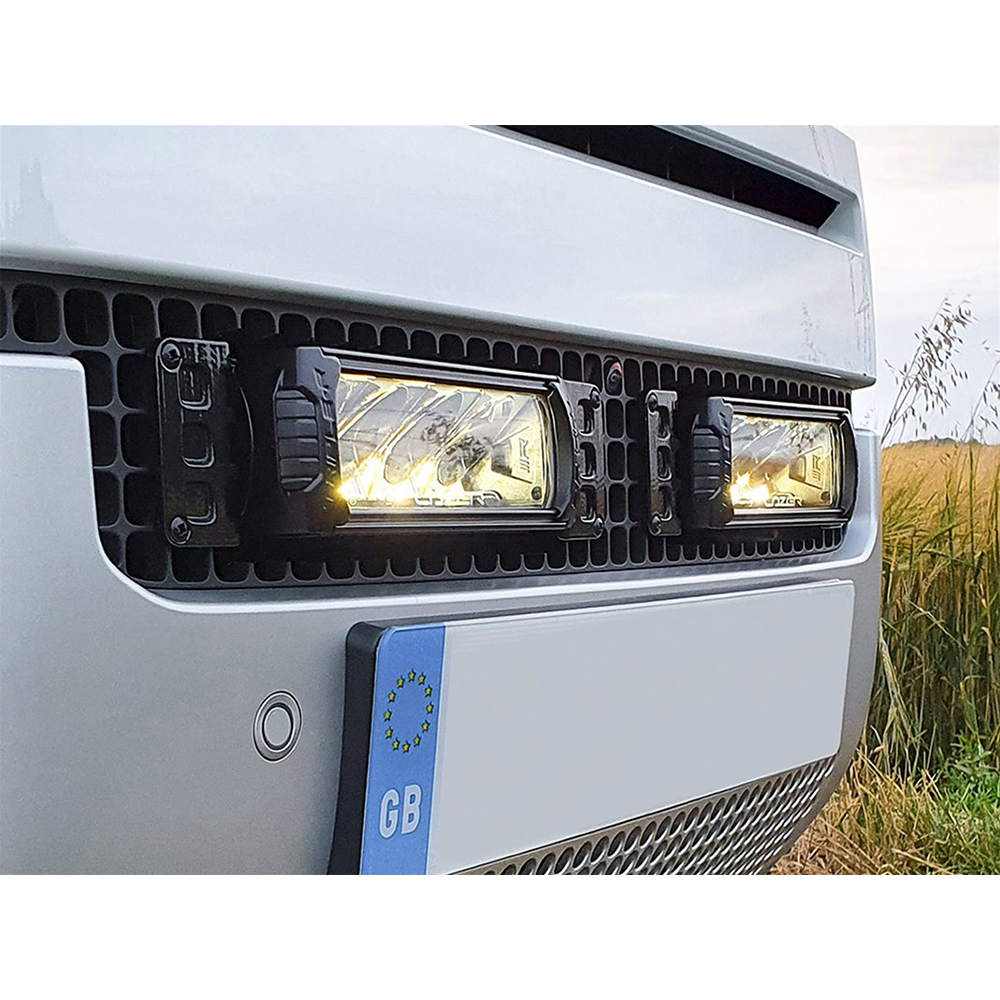

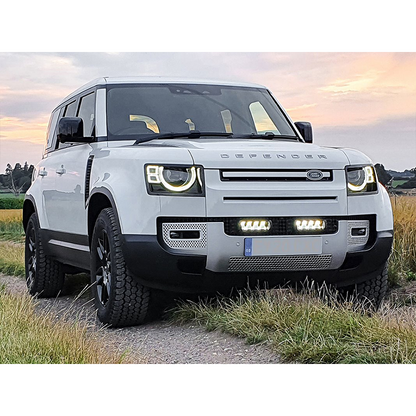

The Land Rover Defender kit, designed for MY20 vehicles onwards, includes a pair of Triple-R 750, plus wiring kit, alongside 4x brackets precision-engineered to engage perfectly with the standard lower grille on the vehicle, with added strength and security provided by the supplied self-tapping, anti-theft screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit everytime.

Lazer Grille Integration Kits are optimised for use with Triple-R 750 High Performance LED driving lights.

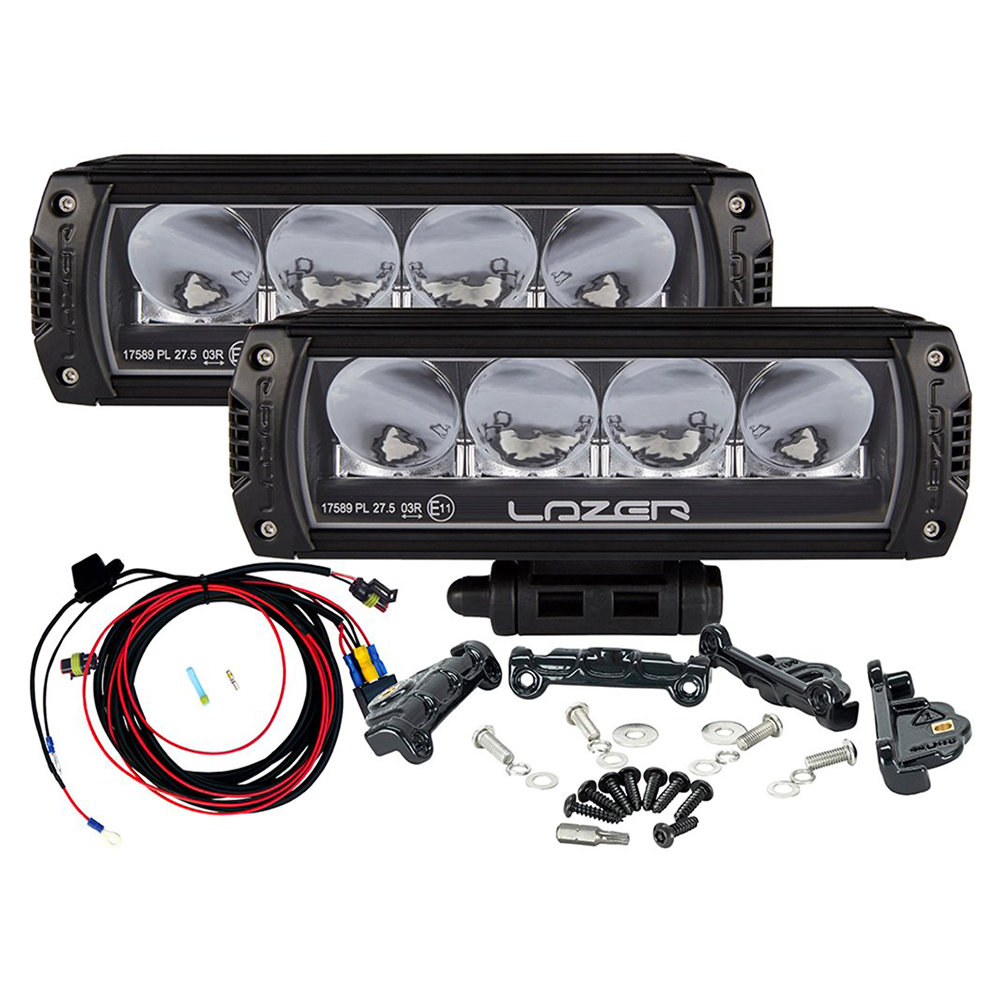

What’s included:
2 x Triple-R 750 LED Spotlights

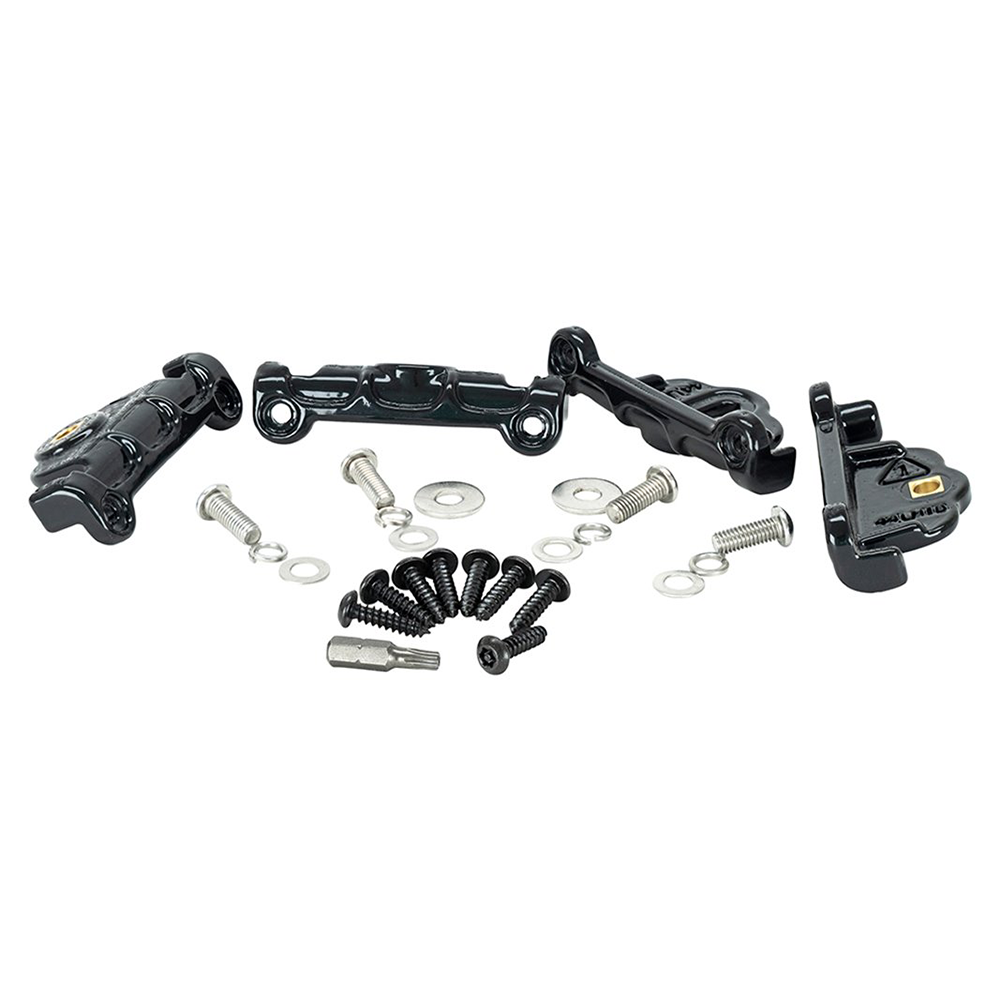

1 x Mounting Kit (comprising 4x Brackets and fasteners)
1 x Cutting Guide (comprising 4x Brackets)
1 xTwo-Lamp Wiring Kit
1 x Installation instructions

Key Features
> Bespoke vehicle integration kit for Lazer LED Spotlight installation
> Custom fit for Land Rover Defender (MY 2020+)
> Available with: Triple-R 750 or Triple-R 1250 High Performance LED Spotlights
> Added option for white or amber position/side light function (Standard models only)
> Kit also includes bespoke mounting brackets and wiring kit
> Brackets made from high strength, UV-stable, ASA material
> Fully road-legal
> 5-year warranty
> Made in Britain

Technical Specifications
Based on standard setup i.e. x2 Triple-R 750 High Performance LED Lamps:
> Voltage Range 10-32V
> LED Life 50,000 hours
> Weight 2 kg

High Beam Function
Total Luminous Flux 9240 Lm
Colour Temperature 5000K
Number of High Output LEDs 2 x 4
Power Consumption 88 Watts
Current Draw (at 14.4V) 6.2 Amps

Certification
High Beam ECE R112
E-Mark Ref 35 x2
Position Light (White only) ECE R7

Photometric Data
Horizontal Beam Angle 19 Degrees
0.25 lx Line 1225 metres
0.5 lx Line 866 metres
1 lx Line 612 metres
3 lx Line 354 metres
