All 30 Spline Dana 44
All 30 Spline Dana 44
All 30 Spline Dana 44
All 30 Spline Dana 44

All 30 Spline Dana 44

Regular price £1,335.99 Sale price£899.00
/
Tax included. Shipping calculated at checkout.

  • Carbon Neutral Delivery
  • Click & Collect Available
  • Free UK Mainland Delivery on Orders Over £50
  • Available
  • Inventory on the way

Spline 30
Shaft diameter 33.3 (1.31")
Ratio 3.73 & DN

Chevrolet / GMC / Hummer
10/1500 Series, C, G, K, P, Blazer, Jimmy, Yukon, Suburban, Vans Dana M44, 3600lb tp 1980 front
20/2500 Series, C, G, K, P, Cab Chassis, Pickup, Suburban, Rally, Sportvan Dana 44 to 180 front

Chrysler / Jeep
TJ Wrangler Dana 44 1997 on rear
Commanche truck 1987-89 rear
XJ w/ metric ton package 1986-91 rear
CJ (5, 6, 7 & 8) Dana 44-3R 1969-75,86 rear
JK Wrangler (not Rubicon models) Dana 44 2007 on rear
Full size AMC Cherokee, Grand Wagoneer Dana M44-1F 1974-93 front
Full size AMC Cherokee, Grand Wagoneer Dana 44 1986-93 rear
Full size AMC Cherokee, Grand Wagoneer Dana M44-3R 1969-79 rear
J10, Light Truck, FC150, 170, Honcho Dana M44-1F 1971-88 front
J10, Light Truck, FC150, 170, Honcho Dana M44-R 1970-88 rear
J20, Medium Truck, J30, Heavy Truck Dana M44-1F 1970-88 front

Dodge
100, 150, 200, 250, A, B, D, W Dana 44, half ton truck front
RAM 1500 Dana 44 1994-03 front

Ford
F100/150 Pickup, E100/150 Van (2WD), Bronco Dana 44, C-clip 1983-96 front
F100/150 Pickup, E100/150 Van (2WD), Bronco Dana 44 to 1982 front
F100/150 Pickup, E100/150 Van (2WD), Bronco Dana 44 1977-79 rear
F250 Pickup, E250 Van (2WD) Dana 44, C-clip 1983-96 front
F250 Pickup, E250 Van (2WD) Dana 44, to 1983 front

Holden / General Motors / Vauxhall
Holden Frontera/Sport Dana 44 1999 on rear all ratios

Isuzu
Isuzu Rodeo/Sport, Isuzu Amigo, MU Dana 44 1999 on rear all ratios
Isuzu Axiom, Honda Passport Dana 44 2001 on rear

SsangYong
Musso / Rexton / Korando Dana 44, automatic 1996 on rear

The ARB Air Locker is a pneumatic locking differential that uses air to facilitate the locking of both axles. This action converts your differential from a conventional open to a full spool type axle supplying 100% power to both wheels to keep you going through the worst terrain.

A relentless commitment to research and design, the use of quality materials, and an uncompromising approach to manufacturing have all contributed to the Air Locker’s success in over 100 countries worldwide.

Designed and manufactured in Australia, ARB Air Lockers will enhance the traction of your 4×4 in just about any terrain, whether it’s rock, clay, gravel, sand, snow or mud.

Now with a state-of-the-art two piece design available right across the range, forged gears for the ultimate in strength and durability, and an industry-leading five year warranty, ARB Air Lockers are better built and better backed than ever before.

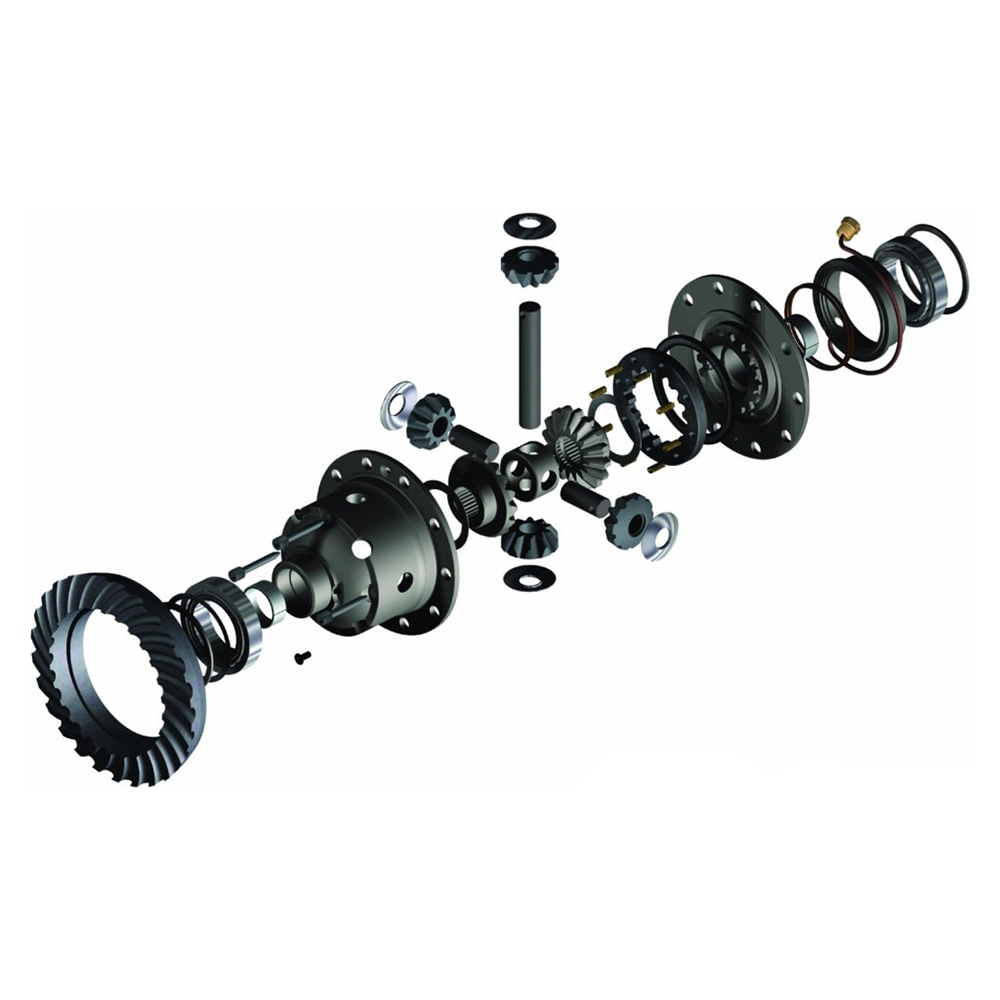

Forged Gears
Strength, durability and resistance to fatigue in all Air Locker components is paramount. With phenomenal forces being applied to the side and pinion gears within the differential, ARB has invested heavily in the application of forged gears, typically found in heavy duty commercial, race and agricultural transmissions. When combined with ARB’s patented ‘timed gear’ design, the resulting strength of the whole assembly is amplified.

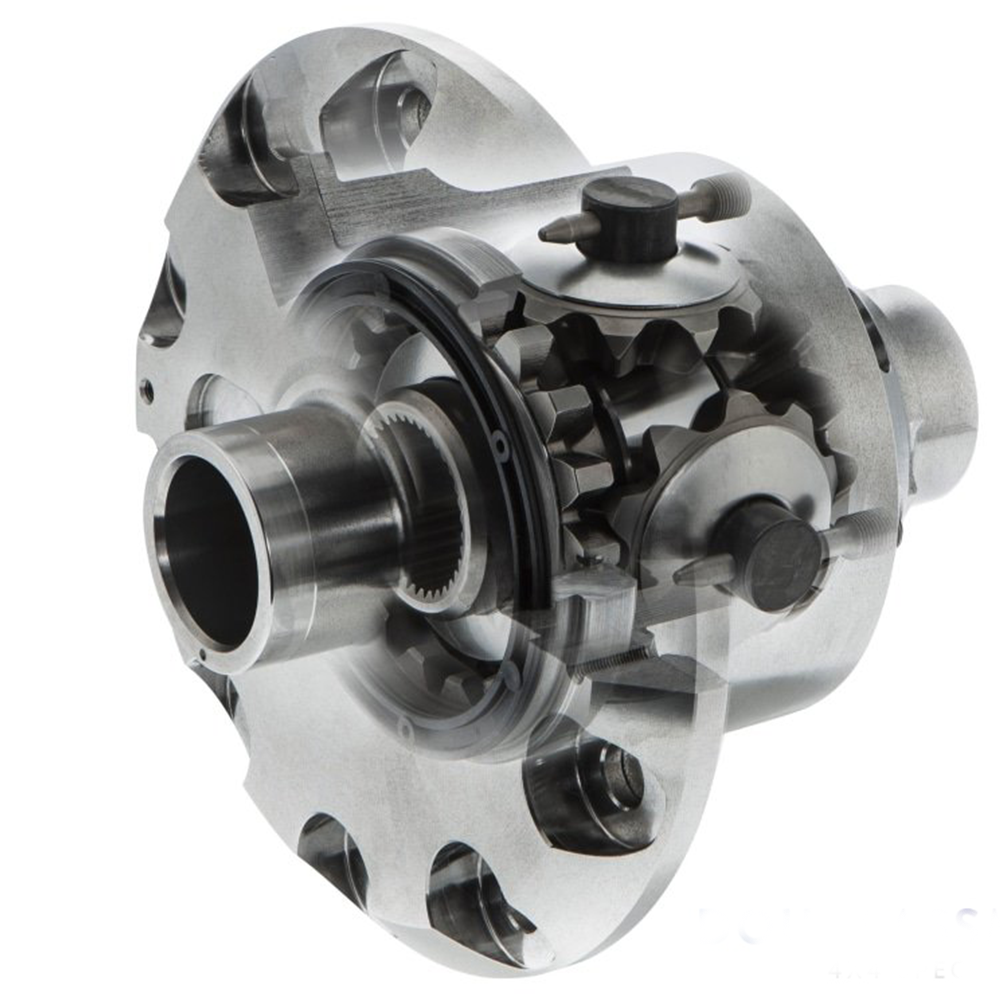

Two Piece Design
Housing this superior internal gear train in a two-piece case brings further benefits. Machining a case from two pieces instead of three results in a much higher dimensional accuracy of the finished assembly and has allowed ARB engineers to improve the design of other elements, resulting in a reduction of moving parts, increased strength and a more responsive activation.

ARB onboard air compressor required to activate Air Lockers (sold separately)

Images used for demonstrative purposes only
